Home > Products > Ore Dressing Machine > Shaking TableShaking Table
- Price:Negotiable
- Supply Ability:7 Set/Sets per Week
- Port:Qingdao,Tianjin, Shanghai or others
- Type:shaking table separation
- Application:Commonly used in iron ore concentration plant
- Place of Origin:Henan China (Mainland)
- Brand Name:Hongxing
- Model Number: HX
- Certificate:ISO9001:2008
- Warranty: 12 Months
- Color: Orange / white
- Installation:under engineer's guidance
- Delivery Means: Container
The shaking table is a gravity dressing machine which is mainly used in the ore beneficiation plant for separating all kinds of black metals and non metals, and it is also called mineral separating shaking table.
The jerking table is also used for dressing coal other than ore dressing and it can also be called shaking table separation.
Hongxing shaking table has simple structure and convenient operation, and it can be used for separating fine rocks and the effective separating granularity ranges from 3mm to 0.019mm and the separation precision is high and the granularity is even.

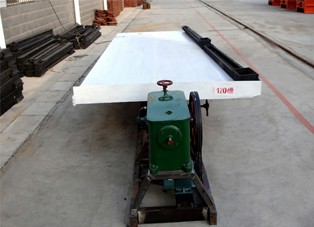

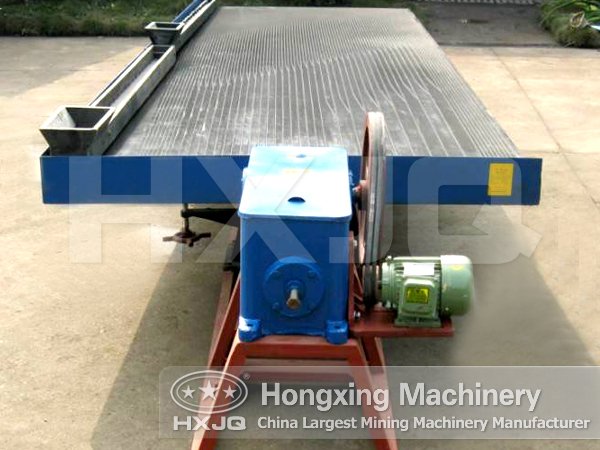

Product Gallery
Technical parameters of
Shaking Table
| Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
| Bed surface Dimensions |
Length （mm） |
4450 | 4450 | 4450 |
| Driving part Width （mm） |
1855 | 1855 | 1855 | |
| Concentrate part Width （mm） |
1546 | 1546 | 1546 | |
| Max.feeding size（mm） |
2 | 0.5 | 0.15 | |
| Feeding amount （t/d） |
30-60 | 10-20 | 15-25 | |
| Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
| Stroke （mm） |
16-22 | 11-16 | 8-16 | |
| Frequency (f) |
45-48 | 48-53 | 50-57 | |
| Bed surface Water quantity （t/d） |
80-150 | 30-60 | 10-17 | |
| Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
| Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
| Table board corner(°) |
32-42 | 40 | 42 | |
| Concentrating area（㎡） |
7.6 | 7.6 | 7.6 | |
| Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
| Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
| Motor power(kw) |
1.1 | 1.1 | 1.1 | |
| Transmission device |
Eccentricity | |||
