Details
Home > Products > Powder Grinding Equipment > Raymond MillRaymond Mill
- Supply Ability:5 Set/Sets per month
- Port:Qingdao,Tianjin, Shanghai or others
- Type:r3/r4/r5/r6
- Input Size:20-30mm
- Materials:Limestone, calcite, barite, dolomite,marble
- Place of Origin:Henan China (Mainland)
- Brand Name:Hongxing
- Model Number: HX
- Certificate:ISO9001:2008
- Warranty: 12 Months
- Color: Orange / white
- Installation:under engineer's guidance
- Delivery Means: Container
Raymond mill is briefly called grinder mill, which is mainly used for the grinding work on the stone. Raymond mill is one important grinding plant in the grinding production line.
This machine is mainly used in the ore dressing factory, and the applying material includes: barite, betonies, dolomite, limestone, marble, quartz, feldspar, calcium carbonate. This machine also can be called rock grinder or stone flour mill.
Hongxing Raymond grinder takes the advanced structure, and improves the big size Raymond mill in order to realize the higher working efficiency, lower energy consumption, bigger throughput and longer lifespan.

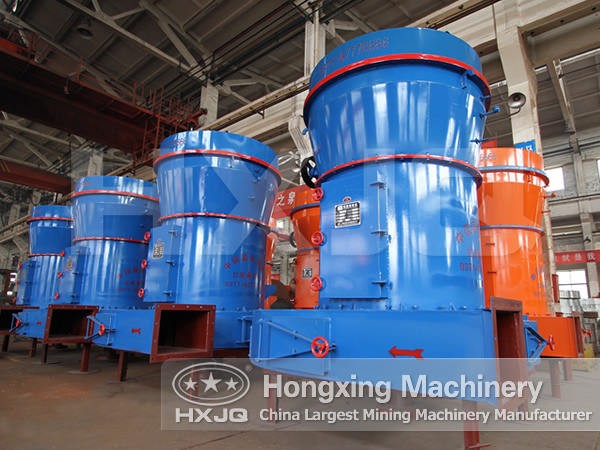

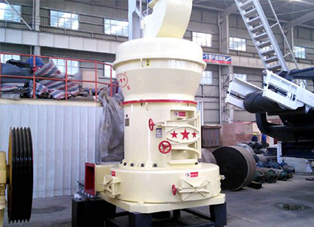

Product Gallery
Technical parameters of
Raymond Mill
| Model | 4525 | 4119 |
| Feeding Size(mm) | ≤30 | ≤25 |
| Output Size(mm) | 0.044-0.173 | 0.044-0.173 |
| Shift Output of Different Material Fineness(t) | 16-176 | 8-78 |
| Rotation Speed of Central Shaft(r/min) | 82 | 105 |
| Ring Diameter(mm) | 1770 | 1400 |
| Roller Diameter(mm) | 450 | 410 |
| Roller Height(mm) | 250 | 190 |
| Main Motor | Y315M-4-132 | Y280S-4-75 |
| Fan Motor | Y315M-4-132 | Y280S-4-75 |
| Analyzer Motor | YCT250-4A-18.5 | YCT200-4B-7.5 |
Note: Please enter your demand such as Raw material type, Capacity, Feeding material size, Final product size, etc. To become our quality clients will have access to a discount of contract!
