Home > Products > Ore Dressing Machine > Flotation MachineFlotation Machine
- Supply Ability:2 Set/Sets per Week
- Port:Qingdao,Tianjin, Shanghai or others
- Type:XJK
- Application:Used in ore beneficiation line
- Place of Origin:Henan China (Mainland)
- Brand Name:Hongxing
- Model Number: HX
- Certificate:ISO9001:2008
- Warranty: 12 Months
- Color: Orange / white
- Installation:under engineer's guidance
- Delivery Means: Container
Flotation cell can be often seen in ore dressing factory, which is applied for sorting non-metallic material, and which is one important flotation plant. And what's more, flotation concentrator can be used for sorting the metal material including copper, lead and gold. And flotation cell is also being called flotation separator, flotation machine and flotation-cell.
The working principle of flotation cell: The mineral pulp being added pharmacy will be passed into the gas, and the electric rotor will bring the movement of part pieces to mix and stir in order to make the mineral and gas be sufficiently mixed, and at this minute, the grain of mineral pulp is above on the bubble, floating on the surface, which can reach the purpose of sorting the mineral material through blade scrapings.
This machine is often used in the flotation process of mineral ore.
Flotation separation process: It refers to the flotation process in particular; the flotation process of every material is different, because some mineral material has the higher combination ability with the water, which is difficult to be above on the bubble. We must inspect and examine the mineral ore before selection, and ore much be classified by grinding in order to reach one suitable density and fineness of flotation process.
Hongxing mining machinery majors in producing the ore flotation equipment. Welcome to have a visit and purchase some machines that you need.

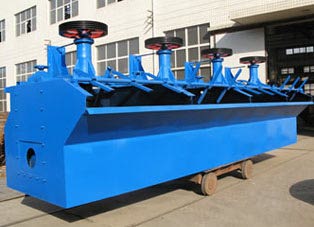

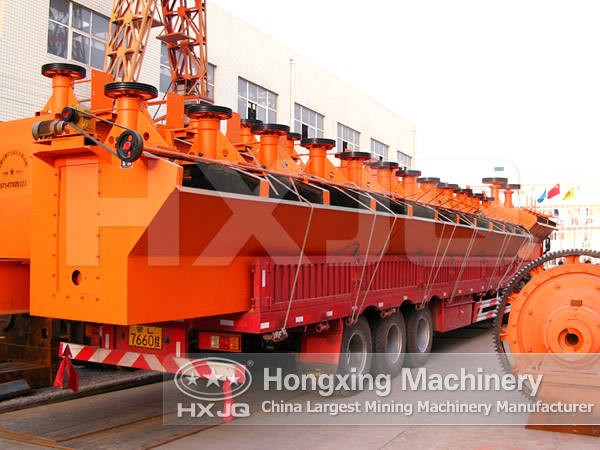

Product Gallery
Technical parameters of
Flotation Machine
| Category | Specification Model |
Effective cubage （m³） |
Processing capacity （m³/min） |
Main shaft loam board | Dimensions (L×W×H) （mm） |
Single trough Weight （t） |
|||
| Power （kw） |
Rotate speed （r/min） |
Rotate speed （r/min） |
Power （kw） |
||||||
| XJK type flotation machine |
XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | 700×700×700 | 0.5 |
| XJK-0.62 | 0.62 | 0.3-0.9 | 3.0 | 400 | 25 | 1.1 | 900×820×850 | 1.0 | |
| XJK-1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1100×1100×1000 | 1.4 | |
| XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | 1750×1600×1100 | 2.5 | |
| XJK-5.8 | 5.8 | 5-7 | 22 | 240 | 25 | 1.5 | 2200×2200×1200 | 3.6 | |
| SF type flotation machine |
SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | 700×700×750 | 0.5 |
| SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 900×820×950 | 1.0 | |
| SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1100×1100×1100 | 1.9 | |
| SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1750×1600×1150 | 2.6 | |
| SF-4 | 4 | 2-4 | 15 | 220 | 25 | 1.5 | 1850×2050×1200 | 2.9 | |
| SF-8 | 8 | 4-8 | 30 | 191 | 25 | 1.5 | 2200×2900×1400 | 4.2 | |
| SF-10 | 10 | 5-10 | 30 | 191 | 25 | 1.5 | 2200×2900×1700 | 4.5 | |
| SF-20 | 20 | 5-20 | 30×2 | 191 | 25 | 1.5 | 2850×3800×2000 | 9.9 | |
| JJF type flotation machine |
JJF-2 | 2 | 1-3 | 7.5 | 443 | 25 | 1.5 | 1400×1400×1100 | 1.7 |
| JJF-4 | 4 | 2-4 | 11 | 305 | 25 | 1.5 | 1600×2150×1250 | 2.4 | |
| JJF-8 | 8 | 4-8 | 22 | 233 | 25 | 1.5 | 2200×2900×1400 | 4.5 | |
| JJF-10 | 10 | 5-10 | 22 | 233 | 25 | 1.5 | 2200×2900×1700 | 4.9 | |
| JJF-16 | 16 | 5-16 | 30 | 180 | 25 | 1.5 | 2850×3800×1700 | 8.0 | |
| JJF-20 | 20 | 5-20 | 37 | 180 | 25 | 1.5 | 2850×3800×2000 | 10.5 | |
Note: Please enter your demand such as Raw material type, Capacity, Feeding material size, Final product size, etc. To become our quality clients will have access to a discount of contract!
