Home > Products > Stone Crushing Equipment > Vibrating FeederVibrating Feeder
- Supply Ability:2 Set/Sets per Week
- Port:Qingdao,Tianjin, Shanghai or others
- Type:GZD
- Materials:Quartz, limestone, granite, basalt, coal gangue
- Application:Mining, chemical industry, construction, etc.
- Place of Origin:Henan China (Mainland)
- Brand Name:Hongxing
- Model Number: HX
- Certificate:ISO9001:2008
- Warranty: 12 Months
- Color: Orange / white
- Installation:under engineer's guidance
- Delivery Means: Container
Vibrating feeder is one key machine used for conveying the raw material whose size is the cube to the feed inlet with the smooth speed.Feeder machine applied in the sand production line and stone production line can feed the raw material for the crushing machine and sand maker, which can be widely applied in the industries such as the sandstone producing, ore dressing, building material and the chemical industry.
Vibrating grizzly feeder can produce the centrifugal force by the eccentric rotor, which can make the sieve compartment to be one circle movement and the material can be conveyed to the feed inlet with the movement of the vibration of the sieve compartment.
This product has the advantages such as simple structure, easy operation, low energy consumption, good continuity, low noise and credible operation, and its feeding capacity can be adjusted according to the practical demand of the clients.
Hongxing Mining Machinery is one major feeder manufacturer, which has the big producing capacity and the perfect sale service, and which has become the leader in the same field of china vibrating feeder, and the element above on can be useful to boost the promotion of mining machine all over the world.

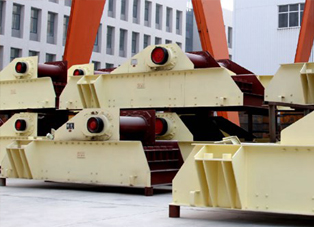

Product Gallery
Technical parameters of
Vibrating Feeder
| Model |
Max. Feeding Size (mm) |
Processing Capacity (t/h) |
Motor Power (kw) |
Obliquity of material trough (°) |
Trough size (mm) |
Dimensions (L×W×H)(mm) |
| GZD-650×2300 | 300 | 80-100 | 1.1×2 | 10-20 | 650×2300 | 2300×1360×780 |
| GZD-750×2500 | 350 | 100-130 | 1.5×2 | 10-20 | 750×2500 | 2500×1460×780 |
| GZD-850×3000 | 400 | 120-150 | 3×2 | 10-20 | 850×3000 | 3110×1800×1600 |
| GZD-1000×3600 | 500 | 150-200 | 3.7×2 | 10-20 | 1000×3600 | 3850×1950×1630 |
| GZD-1100×3600 | 580 | 240-300 | 3.7×2 | 10-20 | 1100×3600 | 3600×2050×1660 |
| GZD-1300×3600 | 650 | 450-600 | 7.5×2 | 10-20 | 1300×3600 | 3900×2350×1750 |
| GZD-1500×3600 | 1050 | 450-1000 | 10×2 | 10-20 | 1500×3600 | 3900×2000×1750 |
| GZD-2000×3600 | 1200 | 550-1000 | 22×2 | 10-20 | 2000×3600 | 3600×2000×1750 |
| GZD-2500×5000 | 1500 | 650-1500 | 11 | 10-20 | 2500×5000 | 5000×2500×1800 |
| ZSW-380×95 | 500 | 100-180 | 11 | 0-10 | 3800×960 | 3800×1640×1320 |
| ZSW-490×110 | 630 | 150-400 | 15 | 0-10 | 4900×1100 | 4980×1830×1320 |
| ZSW-490×130 | 750 | 400-700 | 22 | 0-10 | 4900×1300 | 4980×2580×2083 |
| ZSW-600×130 | 750 | 400-700 | 22 | 0-10 | 6000×1300 | 6082×2580×2083 |
| ZSW-600×150 | 800 | 500-900 | 30 | 0-10 | 6000×1500 | 6086×2662×1912 |
| ZSW-600×180 | 800 | 700-1500 | 37 | 0-10 | 6000×1800 | 6310×3262×2230 |
Note: Please enter your demand such as Raw material type, Capacity, Feeding material size, Final product size, etc. To become our quality clients will have access to a discount of contract!
