Single Toggle Jaw Crusher

  • Capacity:1-1200TPH
  • Motor Powder5.5-400kw
  • Feeding Size:125-1500mm
  • Product Models: PE-150*250 to PE-1600*2100
  • Application Range:Primary and secondary crushing

Get a Quote Services Online

Single Toggle Jaw Crusher
  • Place of Origin:Henan China (Mainland)
  • Brand Name:Hongxing
  • Model Number: HX
  • Certificate:ISO9001:2008
  • Warranty: 12 Months
  • Color: Orange / white
  • Installation:under engineer's guidance
  • Delivery Means: Container

According to different structure, jaw crusher can be divided into single toggle jaw crusher and double toggle jaw crusher. Although these two models are both jaw crushers, however, there are also many difference. The main difference between single toggle jaw crusher and double toggle jaw crusher lies in the crushing method. Compared with double toggle jaw crusher, single toggle jaw crusher has simpler structure and slightly complex trajectory of the moving jaw which moves both in horizontal and vertical directions.

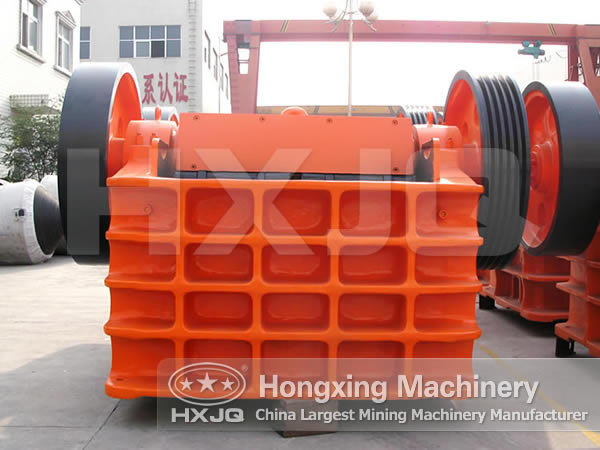

Single Toggle Jaw Crusher

Single toggle jaw crusher is named for its complex swing way, which is one kind of coarse jaw crusher. Single toggle jaw crusher has also become the most widely used crushing equipment for or its advantages of simple structure, favorable price, simple operation, durability and convenient maintenance. Generally speaking, the specifications of single toggle jaw crusher is determined according to the length and width of the feed opening, such as PE1200*1500 single toggle jaw crusher and PE600*900 single toggle jaw crusher.

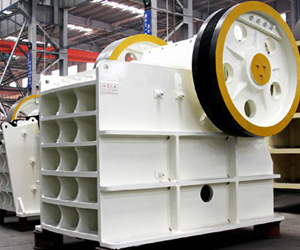

Single Toggle Jaw Crusher

Single toggle jaw crusher for sale is capable of crushing hard ores and rocks with a variety of hardness, which is mainly used for coarse crushing operation of large and medium mines. It is widely to crush materials with diameter of 500 to 1800mm in metallurgy, mine, construction, transportation, cement and other department.

Double Toggle Jaw Crusher

Double toggle jaw crusher is one kind of jaw crusher that has one moving jaw. It is named for double toggle jaw crusher due to its simple trajectory, which is used for fine crushing of materials. Double toggle jaw crusher can crush iron ore, chromium ore, copper ore, pyrite, phosphorus, barite ore, limestone, basalt, granite, quartz, calcium carbide, coke and so on, which is widely used in mining, building materials, coal, chemical industry, metallurgy, etc.

Double Toggle Jaw Crusher

Comparison Between Single Toggle and Double Toggle Jaw Crushers

Compared with double toggle jaw crusher, single toggle jaw crusher has such advantages as lighter weight, simpler structure(reduces a connecting rod, a toggle plate, a spindle and a pair of bearings), higher productivity(20% to 30% higher than double toggle jaw crusher with same specification), etc. Of course, single toggle jaw crusher also has disadvantages. Its jaw plate should be replaced frequently due to abrasion in stone crushing process. But don't worry, Hongxing Machinery supplies jaw crusher spare parts for whole using life.

Technical parameters of Single Toggle Jaw Crusher

Model
Feed opening
(mm）
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
（L×W×H）
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 8P   350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
